Accessing Madrigal data through the web

Access data Access metadata Run models Other Madrigal sites



Access data

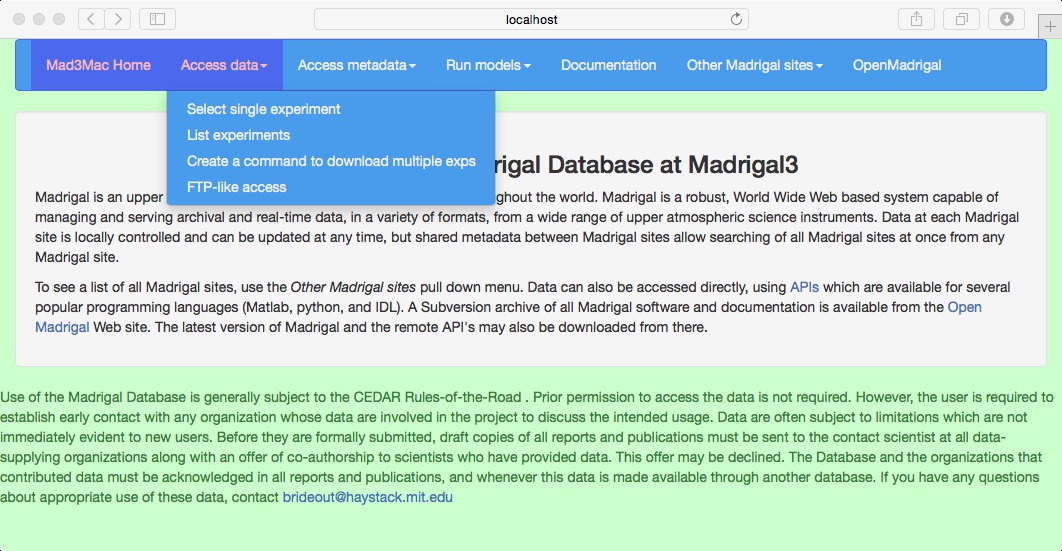

To access data from a Madrigal site, choose the Access data pull-down menu. There are four choices:

  1. Select single experiment - With this web interface, you will browse through all Madrigal data at all Madrigal site to find the experiment you wish. Once at that experiment, you can download the data in any file format you want, or download just the parameters (including derived parameters) you want, with an option of filtering the data. You can also see the experiment plots, or list the records in the experiment files.
  2. List experiments - With this web interface, you can get a list of Madrigal experiments with the selection criteria you specify. Once you choose an experiment, you can do the exact same things as with Select single experiment.
  3. Create a command to download multiple exps - With this web interface, you can create a command with just a few clicks to download all the data you want from Madrigal with a single command to you local computer. This is the way to download multiple experiments at once, rather than repeatedly using the web interface. You will have the choice of downloading the data files as they exist, or you can select the parameters (including derived parameters) you want, with an option of filtering the data. You will need to install the API of the computer language of your choice, and the download link is also found in this web interface.
  4. FTP-like access - An ftp-like web interface with very simple url patterns. Meant primarily for non-English speakers who find the other web interfaces to be challenging.



Access metadata

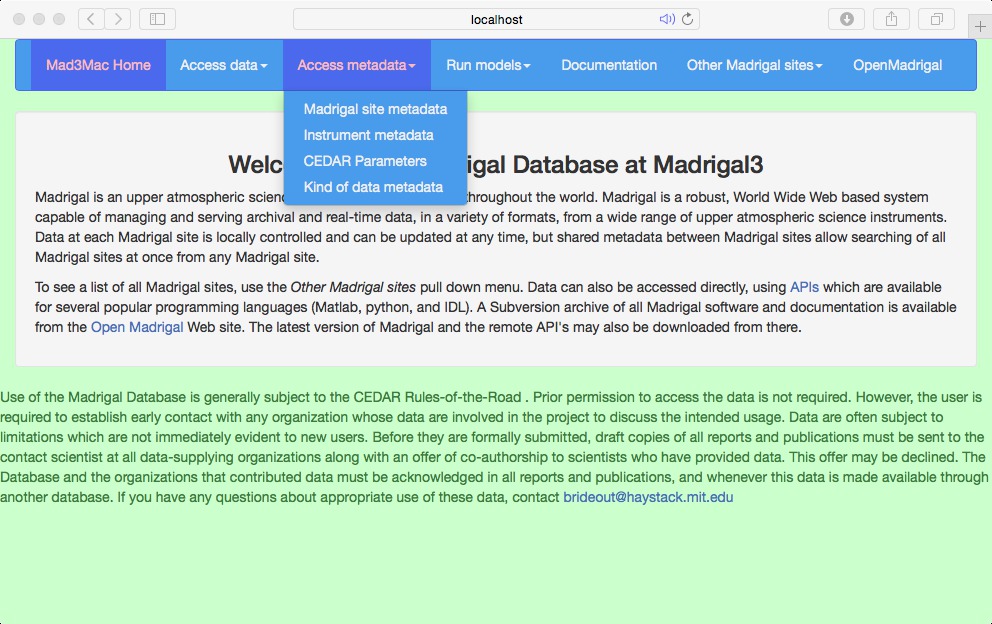

To access Madrigal metadata, use the Access metadata pull-down menu. Madrigal metadata can be useful if you are writing scripts to use the Madrigal API's beyond what the web interface will generate for you. Four types of metadata can be listed:

  1. Metadata about individual Madrigal sites. You can use this link to see an up-to-date list of all Madrigal sites.
  2. Metadata about individual Madrigal instruments.
  3. Metadata about all defined CEDAR parameters.
  4. Metadata about the different kinds of data files associated with each instrument.



Run models

Use the Run models pull-down menu to run model code via Madrigal. There are three options:

  1. Run Madrigal derivation engine - Get derived Madrigal parameters (such as geophysical values, Magnetic feild values, model outputs such as MSIS or IRI, etc) for a specified time and range of points.
  2. Looker - Calculate values associated with "looking" from a particular observation point. For example, you can calculate the aspect angle of the magnetic field from a particular look direction from a particular point.
  3. ISR emprical models - A link to a web page that will run an empirical model for numerous incoherent scatter radars.

Other Madrigal sites

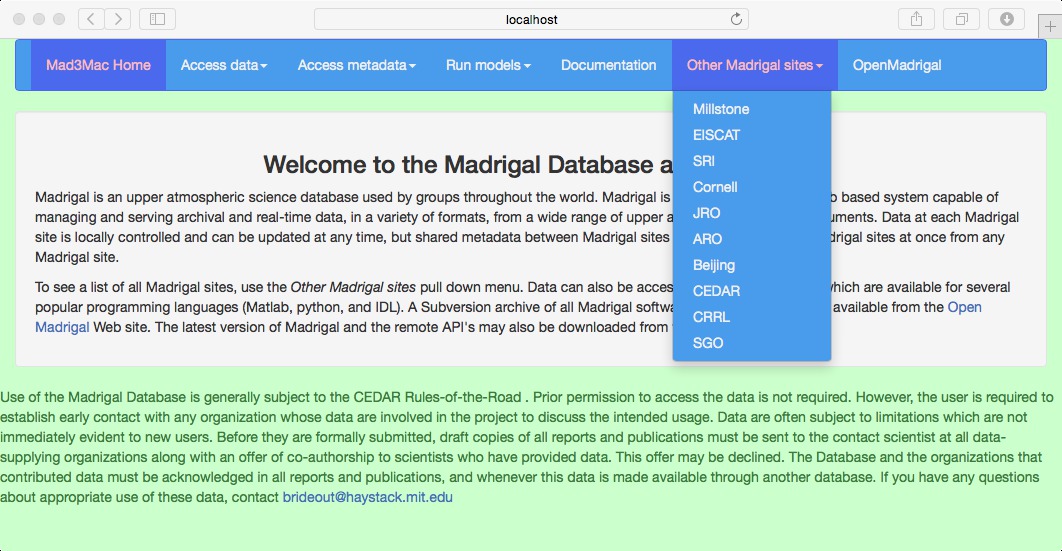

Use the Other Madrigal sites pull-down menu to jump to the home page of other Madrigal sites.
